Control Panel

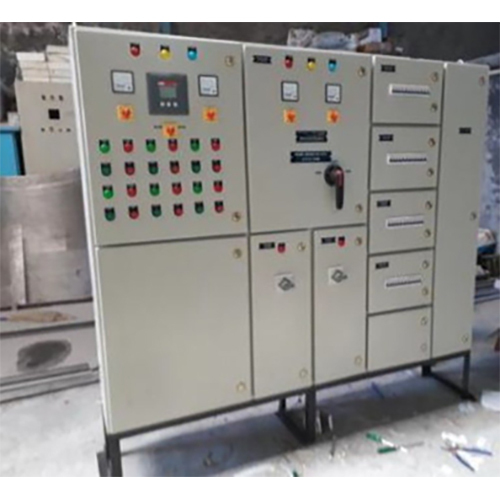

• Application
• Industrial Power Distribution

• Base Material
• Mild Steel

• Cabinet Material
• Mild Steel

• Components
• MCB, MCCB, ACB, Busbar, Volt/Amp meters, Indicators

• Connectivity Type
• Hardwired

• Control System
• Automatic & Manual

• Cooling System
• Natural/Forced Air

• Cover Material
• Other, Powder Coated Sheet

• Current Rating
• 100A - 1600A

• Dimension (L*W*H)
• Customizable

• Display Type
• Other, Analog/Digital Meter

• Features
• Shockproof, Rustproof, Sturdy Construction, Easy Maintenance

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP54/IP55

• Material
• Other, CRCA Sheet Steel

• Maximum Output Current
• 1600 A

• Operating Voltage
• 380 - 415 V

• Panel Type
• Floor Mounted

• Product Type
• Other, Industrial Electrical Power Panel

• Protection Class
• Class I

• Protection Level
• Other, IP54/IP55

• Rated Current
• 100A - 1600A

• Rated Insulation Voltage
• 690 V

• Rated Operation Voltage
• 415 V

• Rated Voltage
• 415 V AC

• Standard
• IEC 61439, IS 8623

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm - 2 mm

• Way
• Single/Double/Multiple

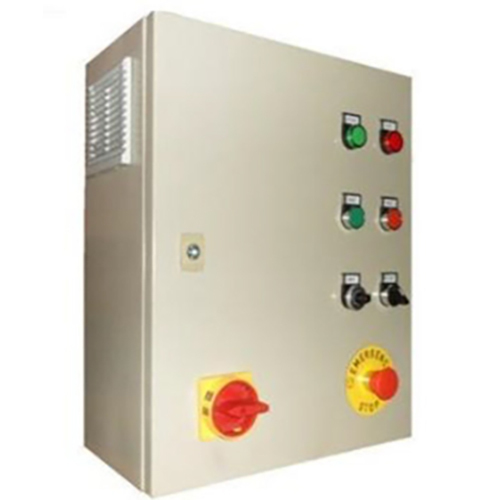

• Application
• Industrial Automation, Power Distribution

• Base Material
• Other, CRCA Sheet

• Cabinet Material
• MS Sheet

• Components
• MCB, MCCB, Contactors, Relays, Indicators

• Connectivity Type
• Terminal / Busbar

• Control System
• Manual / Automatic

• Cooling System
• Natural Air Vented

• Cover Material
• Other, Powder Coated MS

• Current Rating
• 630A

• Dimension (L*W*H)
• 1200mm x 800mm x 300mm

• Display Type
• Other, Analog / Digital Meter

• Features
• Corrosion Resistance, Dust Proof, Modular Construction

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP55

• Material
• Other, Mild Steel (MS)

• Maximum Output Current
• 630A

• Operating Voltage
• 415V AC

• Panel Type
• Floor Mounted / Wall Mounted

• Product Type
• Other, Electrical Control Panel

• Protection Class
• Class 1

• Protection Level
• IP55

• Rated Current
• 630A

• Rated Insulation Voltage
• 660V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IEC 61439 / IS 8623

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• 3 Way

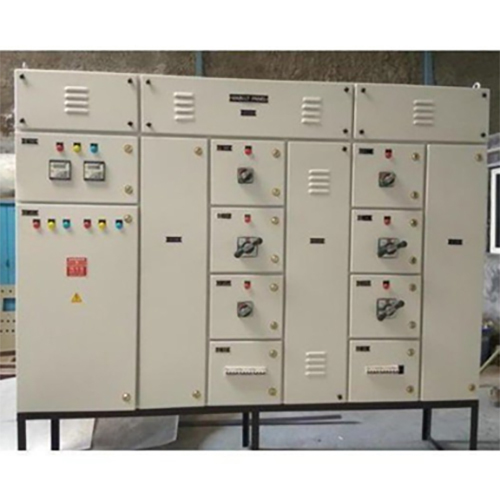

• Application
• Industrial / Commercial Power Factor Correction

• Base Material
• Mild Steel

• Cabinet Material
• CRCA Sheet Steel

• Components
• APFC Relay, Capacitor Banks, MCB/MCCB, Contactor, CTs, Control Wiring, Fuses

• Connectivity Type
• Terminal / Busbar connection

• Control System
• Microprocessor based APFC Relay

• Cooling System
• Natural Air cooled with ventilation louvres

• Cover Material
• Other, Powder Coated Sheet Steel

• Current Rating
• Up to 2000A

• Dimension (L*W*H)
• Customizable as per requirement

• Display Type
• Other, Digital LED/ LCD Display

• Features
• Automatic switching, Real time correction, Over/under voltage protection, Easy maintenance, Modular design

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP42 / IP54

• Material
• Other, CRCA Sheet Steel

• Maximum Output Current
• Up to 2000A

• Operating Voltage
• 415V AC

• Panel Type
• Floor Mounted

• Product Type
• Other, Power Factor Correction Panel

• Protection Class
• Class I

• Protection Level
• Other, IP42 / IP54

• Rated Current
• Up to 2000A

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V AC

• Rated Voltage
• 415V AC

• Standard
• IEC 61439-1 & IS 8623

• Surface Color
• Other, Siemens Grey (RAL 7032) Epoxy Powder Coated

• Surface Finish
• Powder Coated

• Thickness
• 2.0 mm

• Way
• Multiple Way

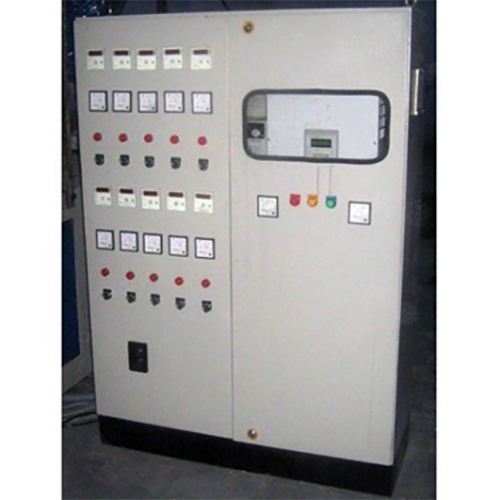

• Application
• Industrial/Commercial Power Factor Correction

• Base Material
• Other, CRCA Steel

• Cabinet Material
• MS (Mild Steel)

• Components
• Intelligent Power Factor Controller, Contactors, MCB/MCCB, Fuses, Capacitors, Busbar, CTs

• Connectivity Type
• Wired

• Control System
• Microprocessor Based

• Cooling System
• Air Vented

• Cover Material
• Other, Powder Coated Sheet

• Current Rating
• 100A to 400A

• Dimension (L*W*H)
• 1200 x 800 x 300 mm (customized sizes available)

• Display Type
• Other, Digital (LED/LCD)

• Features
• Auto/Manual Operating Mode, Auto Step Switching, Auto Correction, Alarm Indication, Over Voltage Protection, Under Voltage Protection, High-Temperature Protection

• Frequency (MHz)
• 50 Hz

• IP Rating
• Other, IP54/IP55

• Material
• Other, CRCA Sheet Steel

• Maximum Output Current
• 400A

• Operating Voltage
• 380-440V

• Panel Type
• Outdoor/Indoor

• Product Type
• Other, Automatic Power Factor Control Panel

• Protection Class
• Class I

• Protection Level
• IP54

• Rated Current
• 200A, 400A (as per requirement)

• Rated Insulation Voltage
• 690V

• Rated Operation Voltage
• 415V

• Rated Voltage
• 415V AC

• Standard
• IS 8623, IEC 60439

• Surface Color
• Other, Grey

• Surface Finish
• Powder Coated

• Thickness
• 1.6 mm

• Way
• 3 Phase
