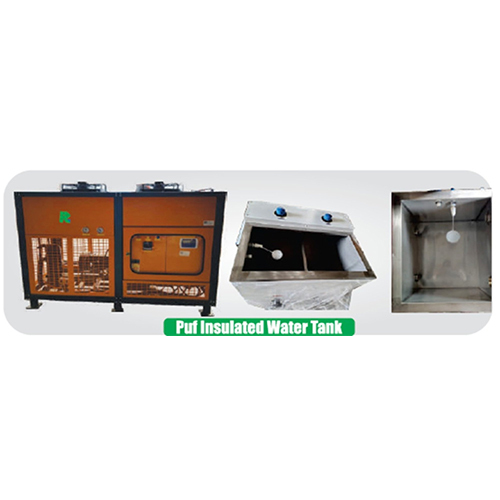

Air Cooled Chillers

Get a Price/Quote

MOQ : 1 Piece

Air Cooled Chillers Specification

Motor
3 Phase, 50 Hz, High Efficiency Induction Motor

Application
Central Air Conditioning, Process Cooling, Industrial Applications

Refrigerating Capacity
20 TR (70 kW)

Air Flow
Approx. 18000 m3/h

Material
Powder Coated Galvanized Steel

Condition
New

Type
Air Cooled Chiller

Dimension (L*W*H)
2200 mm x 1100 mm x 1900 mm

Power Supply
415V, 3Ph, 50Hz

Voltage
415 V

Cooling Type
Air Cooled

Nozzle Material
Stainless Steel

Cooling Coil Material
Copper with Aluminium Fins

Water Flowing Rate
9 m3/h

Water Pump Motor
1.5 HP

Noise Control
Below 75 dB (A)

Compressor
Hermetically Sealed Scroll Type

Service Accessibility
Front and Side Panel removable

Condenser Fan
Axial Flow, Dynamically Balanced

Insulation
High Density PUF/Armaflex

Refrigerant
R-407C / R-410A / R-134A

Control Panel
Microprocessor Based Digital Controller

Operating Temperature Range
5C to 45C

Evaporator Type
Shell and Tube / Plate Type

Safety Features
High/Low Pressure Protection, Phase Protection, Flow Switch

Finish
Corrosion Resistant Paint for Outdoor Use

Expansion Valve
Thermal Expansion Valve

Mounting
Skid Mounted with Anti-Vibration Pads

Air Cooled Chillers Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
8-10 Days

About Air Cooled Chillers

Air Cooled Chillers are cooling systems used to remove heat from industrial processes by using air as the cooling medium. They provide efficient temperature control without the need for water cooling towers, making them easy to install, low maintenance, and ideal for applications in manufacturing, HVAC, and process cooling.

Product specifications:

Compressor Type Digital Scroll
Cooling Capacity25 TR
Application Plastic Industry
No Of Circuits3
Fan Type Fan
RefrigerantR22

Precision Cooling for Diverse Applications

Designed for flexibility, this air cooled chiller suits central air conditioning, process cooling, and a wide spectrum of industrial settings. With its reliable 20 TR (70 kW) cooling capacity, it maintains efficient operation across ambient temperatures from 5C to 45C. The unit adapts to varied load demands, ensuring stable, energy-efficient cooling with optimal refrigerant choices and robust build quality.

Reliability and Service-Friendly Design

Built for longevity, the chiller features a corrosion-resistant powder coated exterior, high-density insulation, and anti-vibration skid mounts. Front and side panels are removable, making routine maintenance and service tasks simple and direct. Internal components like the scroll compressor and shell & tube/plate evaporator are chosen for their durability and ease of servicing, reducing operational downtime.

Advanced Control and Safety Features

Equipped with a microprocessor-based digital controller, the chiller delivers precise temperature regulation and system diagnostics. Safety is prioritized through comprehensive protection mechanisms, including high/low pressure safeguards, phase monitoring, flow switches, and robust insulation. These ensure continuous stable operation and protect the equipment in demanding industrial or commercial environments.

FAQ's of Air Cooled Chillers:

Q: How does the microprocessor-based digital controller enhance the operation of this air cooled chiller?

A: The microprocessor-based digital controller ensures precise temperature regulation and allows real-time adjustments to system parameters. It also provides diagnostics and alerts for maintenance needs, optimizing performance and extending equipment life.

Q: What are the benefits of using R-407C, R-410A, or R-134A refrigerants in this chiller?

A: These refrigerants are widely utilized for their high energy efficiency and environmentally friendlier profiles. Depending on application and efficiency requirements, users can select the best-fit refrigerant for optimal cooling performance and compliance with regulations.

Q: When should the removable front and side panels be accessed?

A: You should access the front and side panels during routine maintenance, troubleshooting, or when servicing key components such as the compressor, fans, or evaporator. Their design allows for quick and convenient service, minimizing downtime.

Q: Where is this air cooled chiller ideally installed?

A: This chiller is intended for outdoor installation, as supported by its corrosion-resistant paint finish, robust construction, and reliable operation over a wide ambient temperature range, making it suitable for demanding Indian climates.

Q: What process does the chiller use to achieve efficient cooling?

A: The chiller utilizes a hermetically sealed scroll compressor, axial flow condenser fans, and either a shell-and-tube or plate type evaporator to efficiently transfer heat. A thermal expansion valve and high-density insulation enhance thermal performance and system efficiency.

Q: How is noise kept below 75 dB(A) during operation?

A: Noise control is achieved through the use of dynamically balanced axial fans and vibration-dampening skid mounts. The design incorporates high-efficiency motors and insulated components to further minimize operational sound levels.

Q: What are the main usage and benefits for industries choosing this air cooled chiller?

A: Industries benefit from reliable, efficient cooling, advanced safety features, and low maintenance needs. Its adaptability suits central air conditioning and process cooling, enhancing productivity while minimizing energy consumption and ensuring operational safety.
